Solar Screen

X-Weave

Heavy-duty 2×2 weave for indoor and outdoor use — 126" wide, railroadable, insect-resistant, and built for large window applications.

Shade Systems / Fabrics / X-Weave

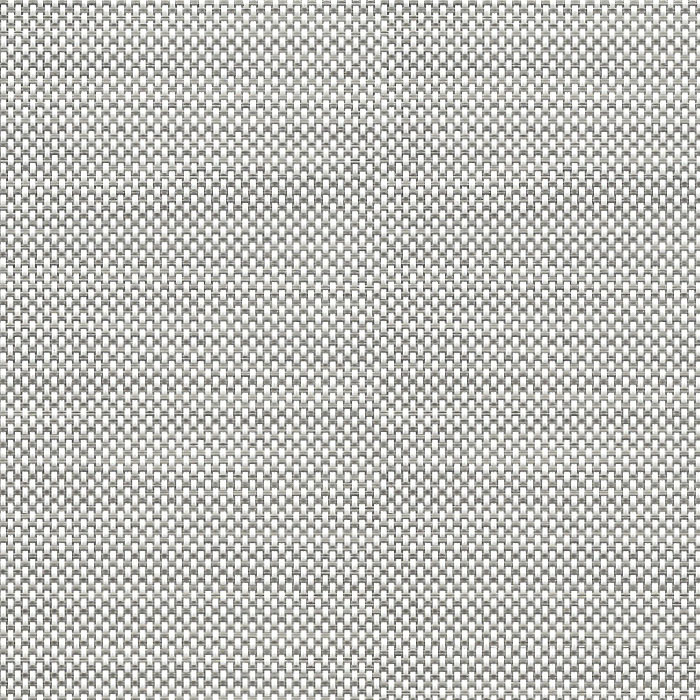

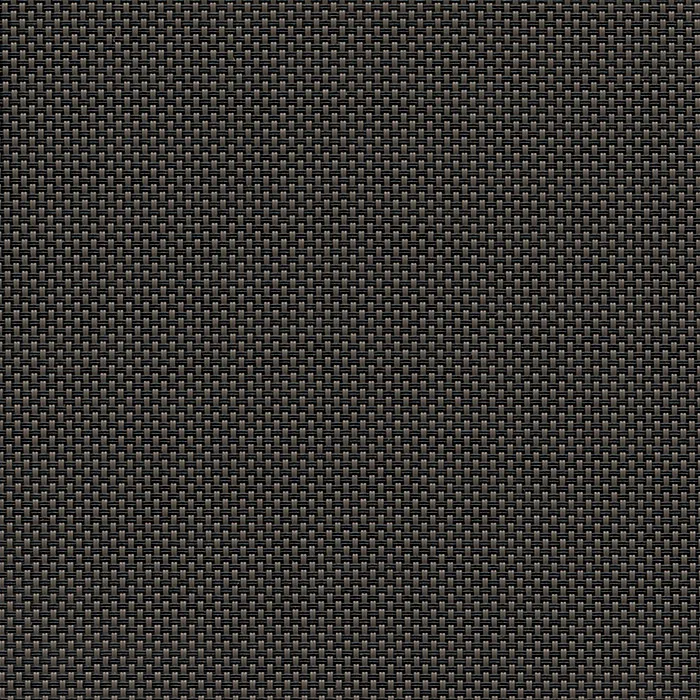

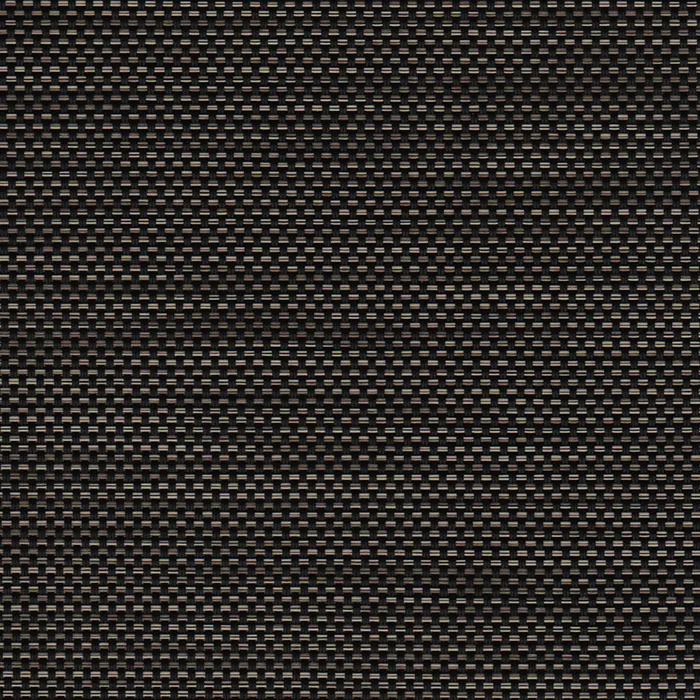

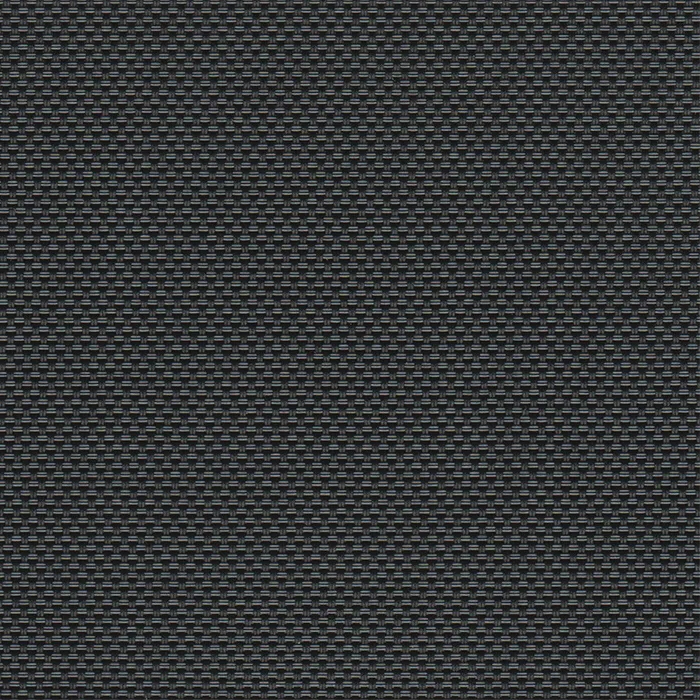

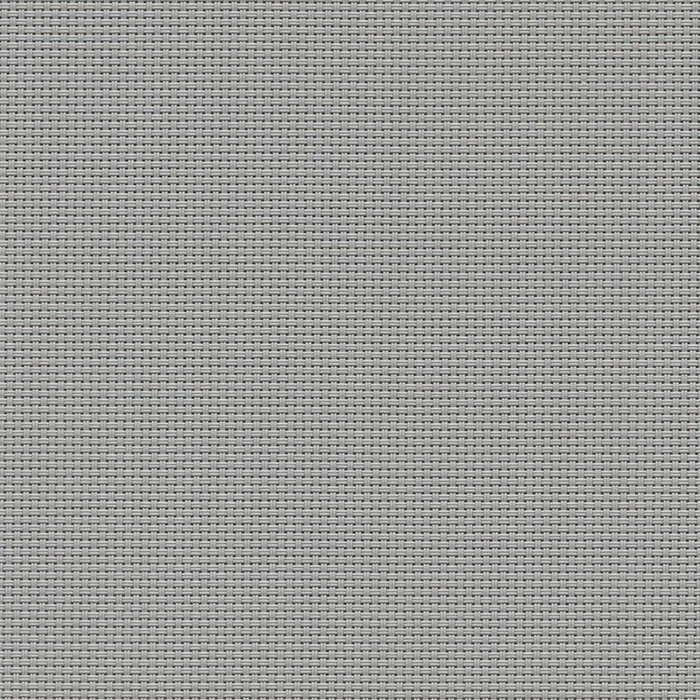

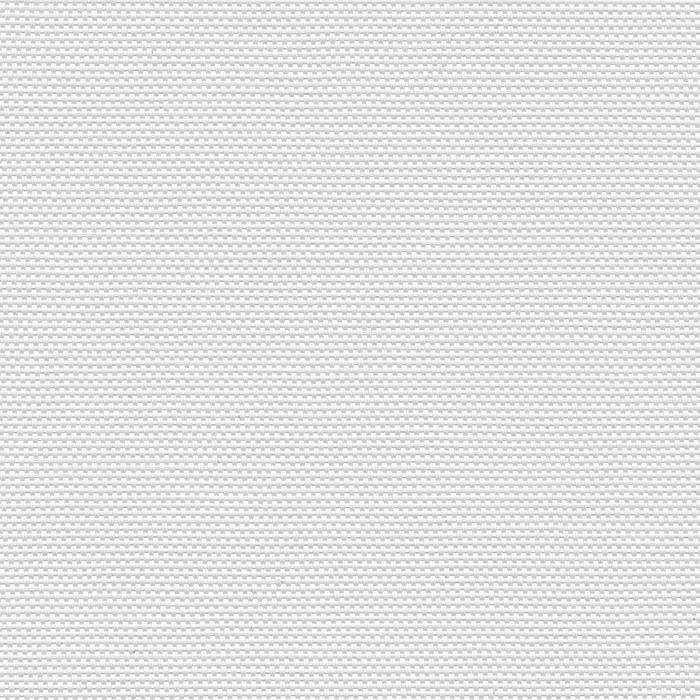

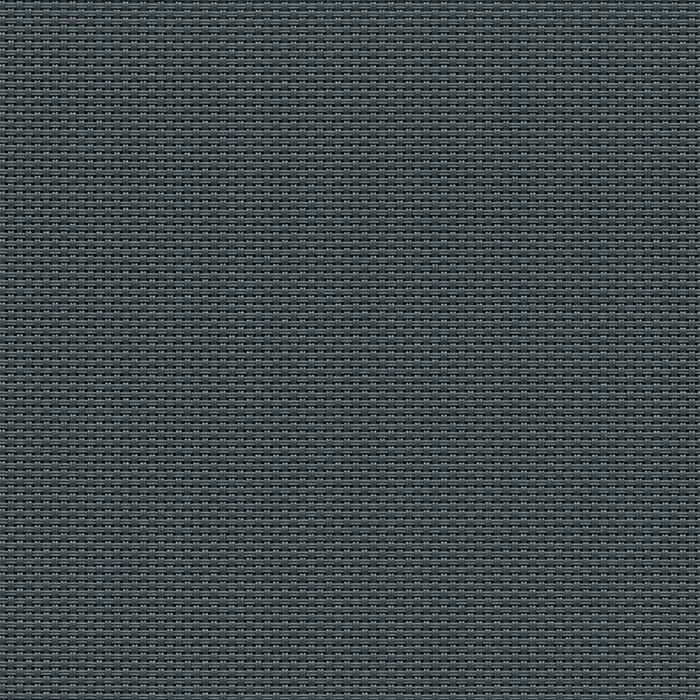

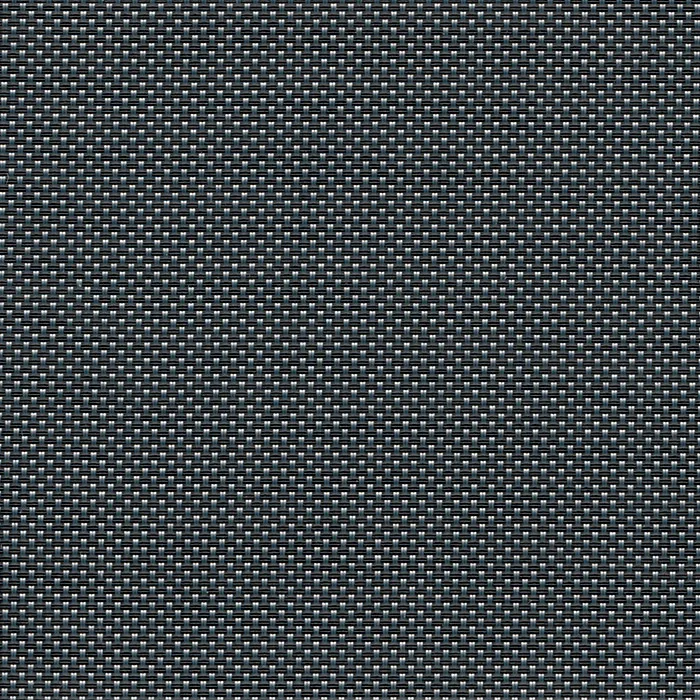

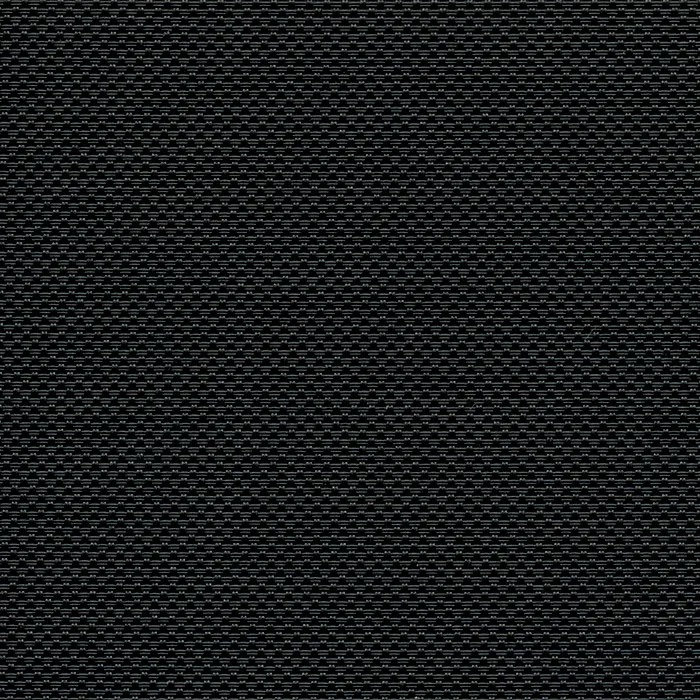

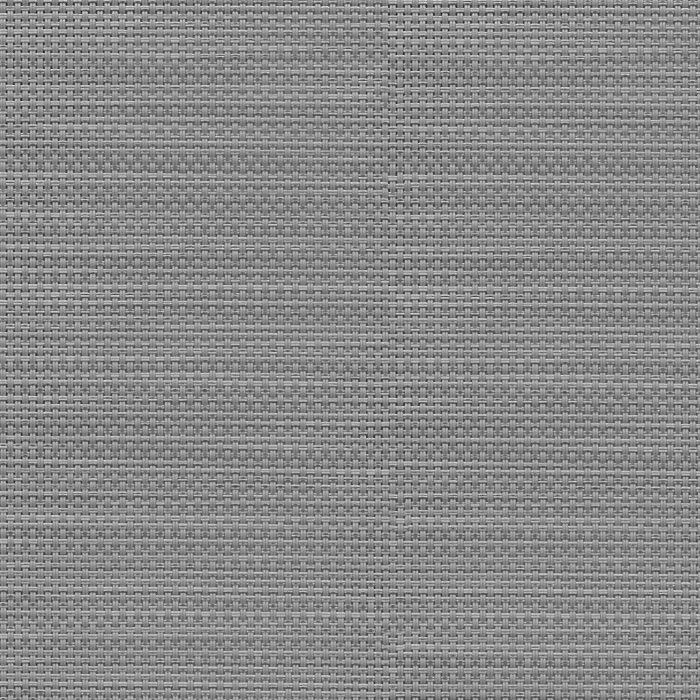

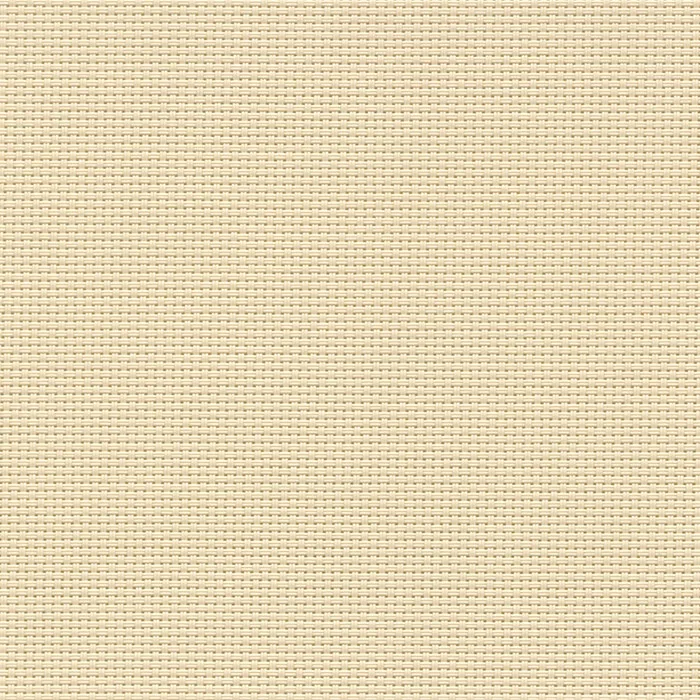

Available Colors

5%, 10%

About This Fabric

Designed for both exterior and interior spaces, X-Weave is a heavy-duty 5% and 10% openness 2×2 weave, making durability and versatility its strongest characteristics. In exterior settings, the fabric defies the elements by preserving view-through while blocking harsh sunlight, rain and is insect resistant. Its fire-retardant finish grants usage in both commercial and residential settings. Availability in 126" roll width combined with the ability to be railroaded awards this the preferred fabric selection for large window applications.

Technical Specifications

Composition 30% Polyester, 70% PVC
Openness 5%
Width 126" (3.2m)
Length 22 yd/roll (20m)
Weight 15.63 oz/yd² (530g/m²)
Thickness 0.032 in (.82mm)
Fire Rating NFPA 701
Acoustics NRC 0.05 | SAA 0.08
Railroadable Yes
Cutting Knife, Crush, Ultrasonic
Applications Panel, Roller, Zip Systems

Downloads & Documentation

X-Weave Cut Sheet X-Weave Fabric Collection Brochure Environmental Product Declaration Health Product Declaration GREENGUARD Gold OEKO-TEX Standard 100

Openness / Variants

5% | 10%

Features

  • 10 Year Warranty
  • Energy Saving
  • Fragrance Free
  • Insect Resistant

Certifications

GREENGUARD Gold ISO 14001 ISO 9001 OEKO-TEX Standard 100 Phthalate Free Flame Resistant Lead Free Formaldehyde Free Anti-Bacterial Insect Resistance EPD
